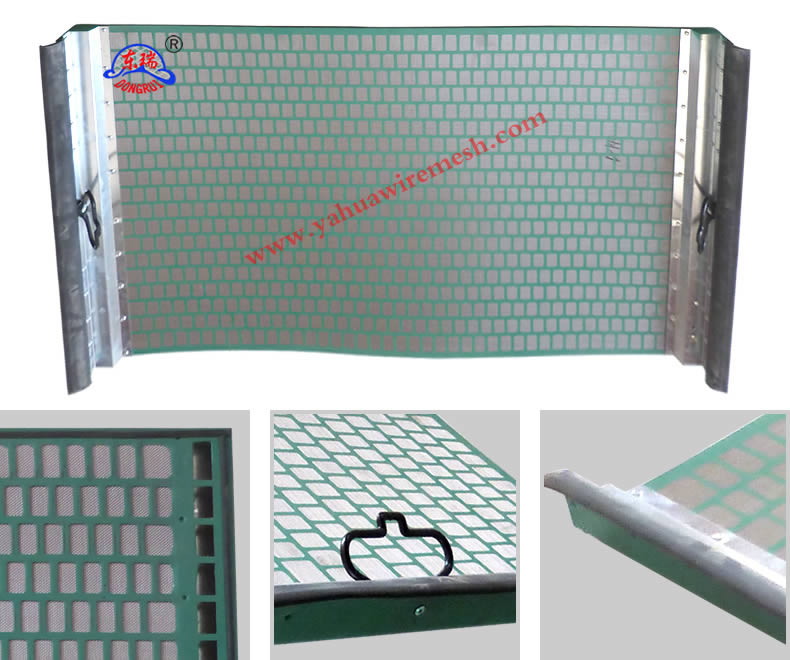

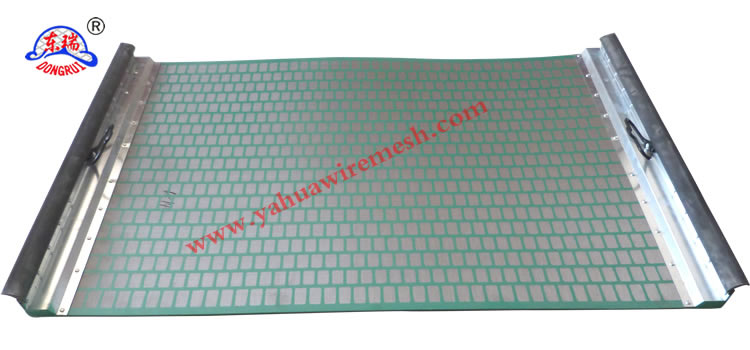

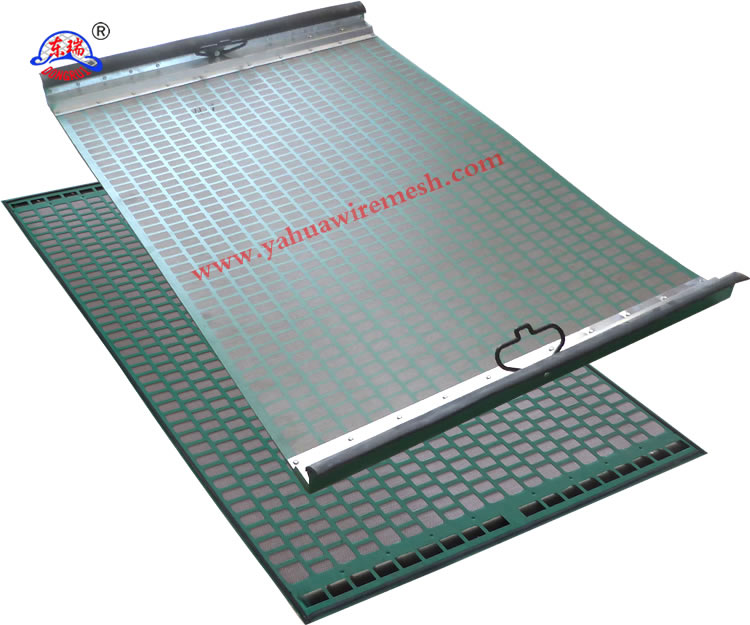

FLC 500 Flat Shale Shaker Screen
FLC 500 flat Shale Shaker Screen constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate combined together. Because of different mesh size, and steel backing plate, on the condition of using intensity, to get the best and most effective filtering area.
The above of thin wire cloth with middle and the bottom of the thick wire cloth, combined with different thickness steel backing plate together, infinitely enhance the whole screen use intensity.
Because of different model and clients requirement, can choose different steel backing plate form, for example hexagonal, rectangular, square and so on, supporting the above different screen cloth, the above cloth is divided into independent small surfaces, prevent the part excessive expansion damaged, better extend the use lifetime.
Advantages of FLC500 Flat Shaker Screen:
1. Wear-resisting
2. long service life
3. Higher flow rate
4. Easy disassembly
5. Trapping (dreg) effect is good
6. Technical expertise
FLC 500 Flat Shaker Screen Parameters
Model | Brand&Model for shaker | Mesh Range | Dimension (Length x Width) | Weight |
SJZ-2 | Yahua FLC500 Series PWP | 20—325 | 1050×697mm | 6.1KGS |
Quality standard: compliant with API RP13C Standard
Remarks: Packaging Details:2 pieces one carton, 20 pcs one wooden case. Out size of the wooden case: 1250*780*1000mm
Shale shaker screen used in solids control equipment are generally made of woven wire cloth, in many different sizes and shapes, with a perforated plate as frame. Our FLC500 Flat Shaker Screen cloth is designed to last longer, handle higher flow rates, resist blinding and remove fine solids. Improved screen life,Increased flow capacity,Lower overall rig screen cost,Available for all shakers.
