FLC 48-30/2000 PMD Shale Shaker Screen
Shale shaker screen is very important for shale shaker. shale shaker as an important one solid control equipment, in order to ensure the normal use mud solids control, so you must make the choice prior to shale shaker screen of drilling mud solids control equipment.
In generally, FLC 2000 PMD Shaker Screen with notch is used in Iran, Saudi Arabia and so on.
Different layers with different density, arrange these layers reasonably and exactly, the screen effect will become better.

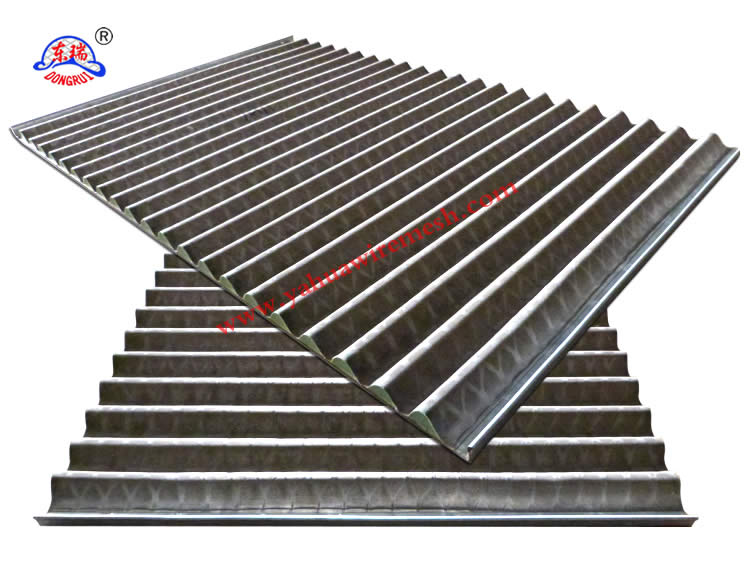

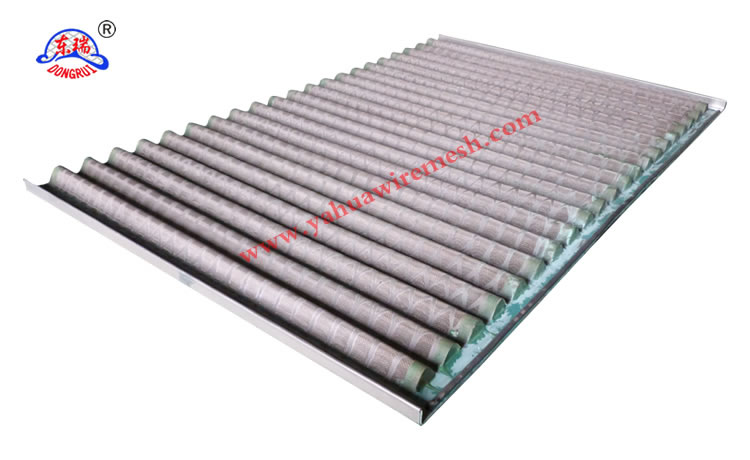

The waved cloth bonded to metal backing plate, has more surface.The effective contact area of wave screen is 125%to 150% of a flat screen, so that wave type screen own higher drilling fluid flow than flat screen.
Model | Brand&Model for shaker | Mesh Range | Dimension (Length x Width) | Weight |
SJZ-5 | Yahua FLC2000 PMD | 20—325 | 1053×697mm | 6.0KGS |
Remarks:
Size:1053*697mm Color:Green
Packaging Details:2 pieces in one carton, 20 pcs in one wooden case.
Advantages of FLC 2000 PMD Shaker Screen:
Long working life, and good ruuber
Easy disassembly, rating of temperature, good performance
Conductivity (powder) liquid, trapping (dreg) effect is good
Current design, technical expertise, adopt new technology
Our screen is conform to API RP 13C standard.
